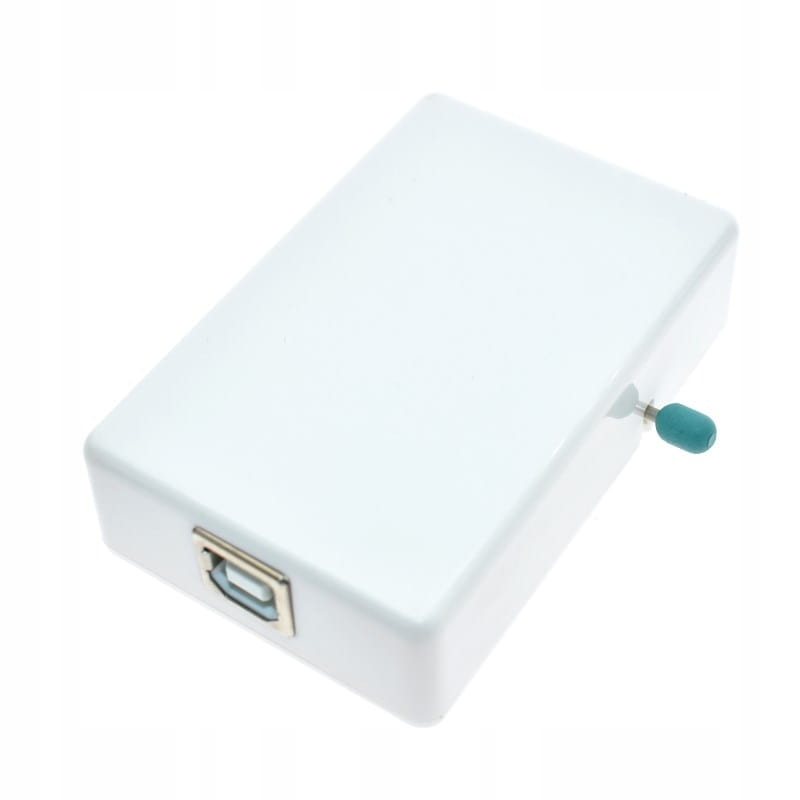

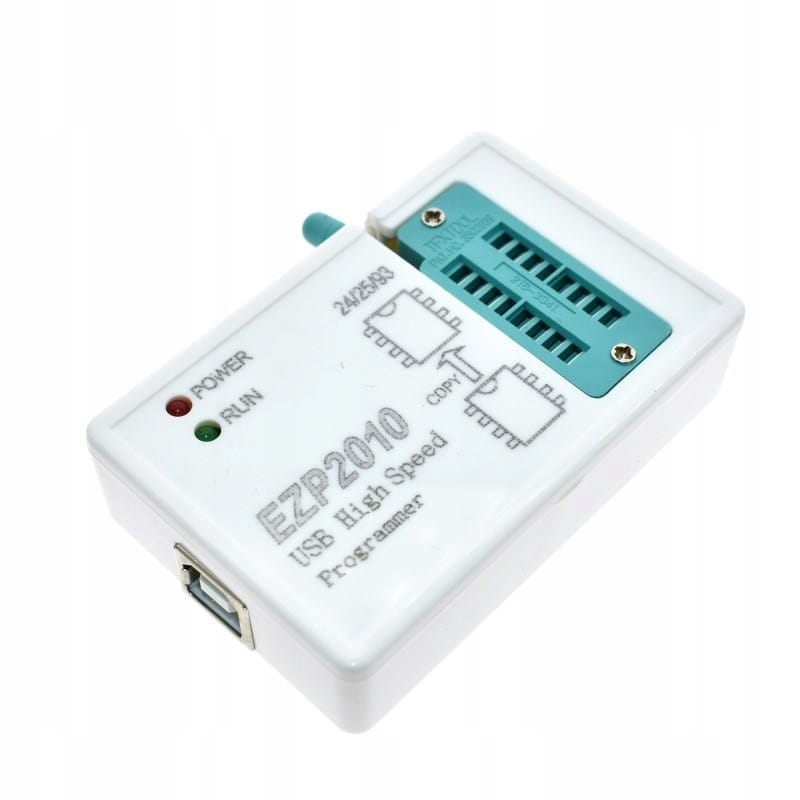

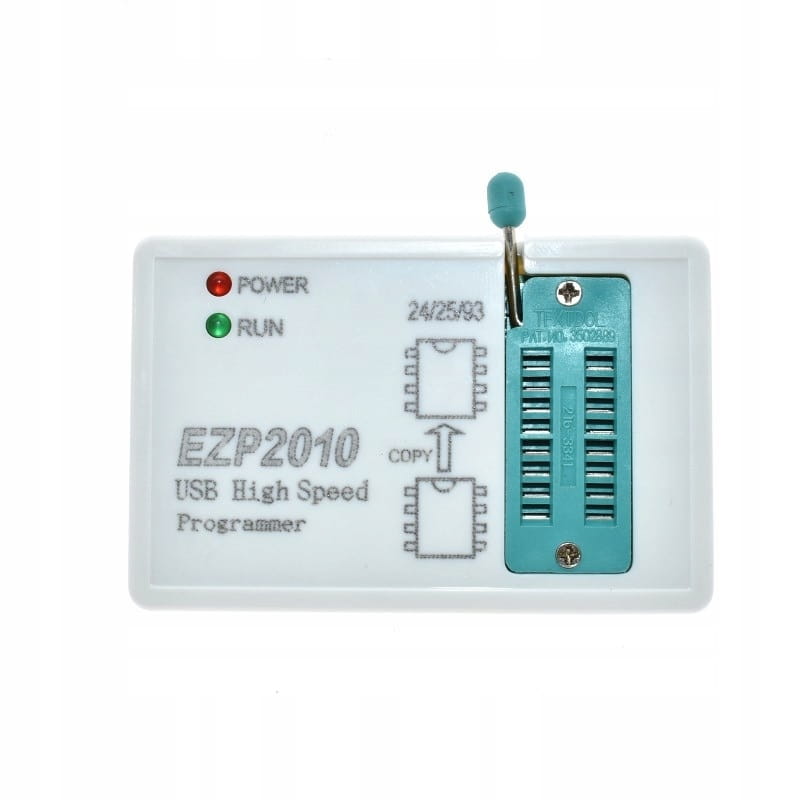

Programator pamięci EEPROM FLASH EZP2010

Programator EZP2010  to uniwersalny programator z interfejsem USB przeznaczony do obsługi najnowocześniejszych pamięci szeregowych typu SPI, I2C, Microwire itd. które są wykorzystywane w wielu urządzeniach.

Możliwości oraz specyfikacja programatora EZP2010:

• interfejs komunikacyjny USB 2.0 - szybki interfejs 12Mb/s
• niezwykle szybkie programowanie i odczyt pamięci
• podstawka programująca ZIF-16
• zasilanie z portu USB - nie wymaga zewnętrznego zasilania
• kopiuje pamięci szeregowe - możliwość kopiowania niektórych serii układów bez komunikacji z komputerem
• automatycznie wykrywa układ
• automatycznie konfiguruje wartość napięcia zasilania pamięci (nie trzeba ustawiać ręcznie )

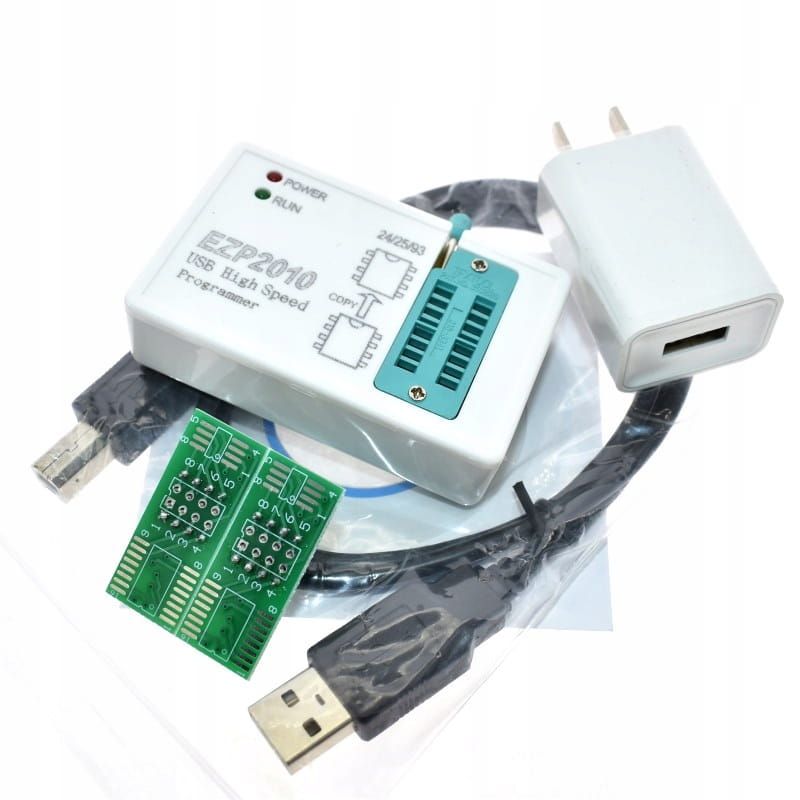

Zestaw zawiera:

• programator EZP2010

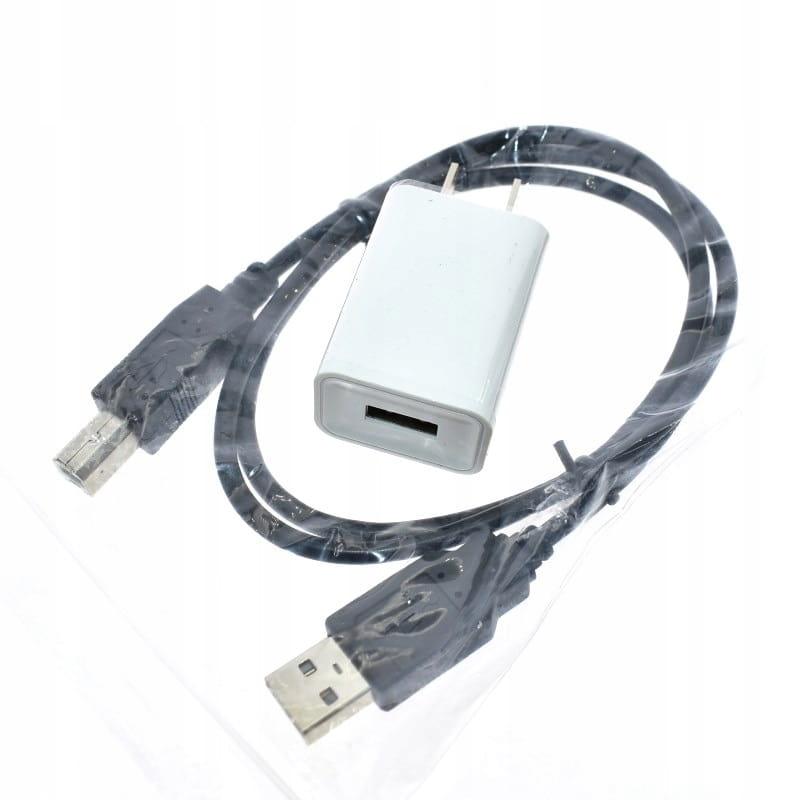

• kabel USB (kolor biały bądź czarny-wysyłany losowo)
• adapter SO8/SO16 - 2szt.
• zasilacz sieciowy (kolor biały bądź czarny-wysyłany losowo) - wymaga adaptera z wtyku USA na EUR)
• płyta CD z oprogramowaniem

Lista obsługiwanych układów :

(aby szybciej wyszukać proszę nacisnąć równocześnie Ctrl + F i wpisać w pole wyszukiwania interesujący nas układ)

*******************25 SPI FLASH*************************

AMIC:A25L05P,A25L512,A25L010,A25L10P,A25L020,A25L20P,A25L040,A25L40P,A25L080, A25L80P, A25L016, A25L16P, A25L032

ATMEL:AT25F512,AT25F512A,AT25F512B,AT25F1024,AT25F1024A,AT25FS010,

AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040, AT26F004,

AT26DF081A, AT25DF161, AT26DF161, AT26DF161A, AT25DF321, AT25DF321A,

AT26DF321, AT25DF641

EON:EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25LF10, EN25P10,

EN25D20, EN25F20, EN25LF20, EN25D40,EN25F40,EN25LF40,EN25D80,EN25F80,

EN25Q80,EN25T80, EN25B16, EN25B16T, EN25D16, EN25F16,EN25Q16,EN25T16,

EN25B32,EN25B32T, EN25F32, EN25P32, EN25Q32, EN25B64, EN25B64T, EN25F64,EN25P64,EN25Q64,EN25F128,EN25Q128

ES:ES25P10, ES25P20, ES25M40, ES25M40A,ES25P40,ES25M80,ES25M80A,ES25P80,

ES25M16, ES25M16A, ES25P16, ES25P32

ESMT:F25L004A,F25L04UA,F25L008A,F25L08PA,F25L016A,F25L16PA,F25L32PA,F25L32QA

MXIC:MX25L512,MX25V512,MX25L1005,MX25L2005,MX25L4005A,MX25V4005,MX25L8005, MX25V8005, MX25L1605D,MX25L1635D,MX25L3205D,MX25L3225D,MX25L3235D,MX25L3237D, MX25L6405D, MX25L12805D

NEXFLASH:NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32

PMC:PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B,PM25LV016B

SAIFUN:SA25F005, SA25F010, SA25F020,SA25F040,SA25F080, SA25F160,SA25F320

SPANSION:S25FL004A,S25FL008A,S25FL016A,S25FL032A,S25FL064A,S25FL128A,S25FL128P

SST:SST25VF512, SST25VF512A, SST25VF010, SST25VF010A,SST25VF020,SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B, SST25VF016B,SST25VF032B, SST25VF064C

ST:M25P05A, M25P10A, M25PE10,M25P20,M25PE20, M25P40, M25PE40, M25P80,M25PE80, M25PX80, M25P16, M25PE16,M25PX16,M25P32,M25PX32, M25P64, M25PX64, M25P128

WINBOND:W25P10, W25X10,W25X10A,W25X10AL, W25X10L, W25P20,W25X20,W25X20A,W25X20AL, W25X20L, W25P40, W25X40,W25X40A, W25X40AL, W25X40L,W25P80,W25X80,W25X80A, W25X80AL, W25X80L, W25P16,W25X16, W25P32, W25X32, W25X64,W25Q64BV,W25Q128BV

MSHINE:MS25X80,MS25X40,MS25X64,MS25X32,MS25X16,MS25X128,MS25X10,MS25X05,MS25X20

GIGADEVICE:GD25T80,GD25Q80,GD25Q32,GD25Q64,GD25Q128,GD25Q512,GD25Q16,GD25Q20,

GD25Q10,GD25F80,GD25F40,GD25D80,GD25D40

***********************24 EEPROM*************************

ATMEL:AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C16, AT24C16A, AT24C16B, AT24C32, AT24C32A, AT24C32B, AT24C64, AT24C64A, AT24C64B, AT24C128, AT24C128A, AT24C128B, AT24C256, AT24C256A, AT24C256B, AT24C512, AT24C512A, AT24C512B, AT24C1024, AT24C1024A, AT24C1024B

CATALYST:CAT24C01, CAT24WC01,CAT24C02,CAT24WC02,CAT24C04, CAT24WC04,CAT24C08, CAT24WC08, CAT24C16, CAT24WC16, CAT24C32, CAT24WC32, CAT24C64, CAT24WC64,CAT24C128, CAT24WC128, CAT24C256, CAT24WC256, CAT24C512, CAT24WC512,CAT24C1024, CAT24WC1024

COMMON:24C00 3V, 24C00 5V, 24C01 3V, 24C01 5V, 24C02 3V, 24C02 5V,24C04 3V,24C04 5V, 24C08 3V, 24C08 5V, 24C16 3V, 24C16 5V, 24C32 3V, 24C32 5V, 24C64 3V,24C64 5V, 24C128 3V, 24C128 5V, 24C256 3V, 24C256 5V, 24C512 3V, 24C512 5V, 24C1024 3V,24C1024 5V

FAIRCHILD:FM24C01L, FM24C02L, FM24C03L, FM24C04L, FM24C05L, FM24C08L, FM24C09L, FM24C16L, FM24C17L, FM24C32L, FM24C64L, FM24C128L, FM24C256L, FM24C512L, FM24C1024L

HOLTEK:HT24C01, HT24LC01, HT24C02, HT24LC02, HT24C04, HT24LC04,HT24C08,HT24LC08, HT24C16, HT24LC16, HT24C32, HT24LC32, HT24C64, HT24LC64, HT24C128, HT24LC128, HT24C256, HT24LC256, HT24C512, HT24C1024

ISSI:IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32, IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024

MICROCHIP:24AA00, 24C00, 24LC00, 24AA01, 24AA014, 24C01C, 24LC014, 24LC01B, 24AA02,24LC02B,24AA024,24AA025,24AA04,24C02C, 24LC024,24LC025,24LC04B,24AA08,

24LC08B, 24AA16, 24LC16B, 24AA32, 24LC32, 24AA64,24FC64,24LC64, 24AA128,24FC128, 24LC128, 24AA256, 24FC256, 24LC256, 24AA512, 24FC512,24LC512, 24AA1024

NSC:NSC24C02, NSC24C02L, NSC24C64

RAMTRON:FM24C04A, FM24CL04, FM24C16A, FM24CL16, FM24C64, FM24CL64, FM24C256, FM24CL256, FM24C512

ROHM:BR24C01, BR24L01, BR24C02, BR24L02, BR24C04, BR24L04, BR24C08, BR24L08, BR24C16, BR24L16, BR24C32, BR24L32, BR24C64, BR24L64

ST:ST24C01, ST24C02, ST24C04, ST24C08, ST24C16, ST24C32, ST24C64

XICOR:X24C01, X24C02, X24C04, X24C08, X24C16

***********************93 EEPROM*************************

AKM:AK93C45AV, AK93C55AV, AK93C65AV, AK93C75AV

ATC:ATC93C46, ATC93LC46(16bit), ATC93LC46(16bit)-SOP8, ATC93LC46(8bit),ATC93LC46(8bit)-SOP8, ATC93C56, ATC93LC56(16bit), ATC93LC56(16bit)-SOP8, ATC93LC56(8bit), ATC93LC56(8bit)-SOP8, ATC93C66, ATC93LC66(16bit), ATC93LC66(16bit)-SOP8, ATC93LC66(8bit), ATC93LC66(8bit)-SOP8

ATMEL:AT93C46(16bit), AT93C46(16bit)-SOP8, AT93C46(8bit), AT93C46(8bit)-SOP8, AT93C46A, AT93C56(16bit), AT93C56(16bit)-SOP8, AT93C56(8bit), AT93C56(8bit)-SOP8, AT93C57(16bit), AT93C57(16bit)-SOP8, AT93C57(8bit), AT93C57(8bit)-SOP8, AT93C66(16bit), AT93C66(16bit)-SOP8, AT93C66(8bit), AT93C66(8bit)-SOP8, AT93C86(16bit), AT93C86(16bit)-SOP8, AT93C86(8bit), AT93C86(8bit)-SOP8

CATALYST:CAT93C46(16bit), CAT93C46(8bit), CAT93C46A, CAT93C46I, CAT93C56(16bit), CAT93C56(8bit), CAT93C56A, CAT93C57(16bit), CAT93C57(16bit)-SOP8, CAT93C66(16bit), CAT93C66(8bit), CAT93C66A, CAT93C86(16bit), CAT93C86(8bit)

COMMON:93C46(16bit), 93C46(8bit), 93C56(16bit),93C56(8bit),93C66(16bit),93C66(8bit), 93C86(16bit), 93C86(8bit)

EXEL:XL93C06, XL93C46, XL93CS46, XL93LC46, XL93C56, XL93LC56, XL93C66, XL93LC66

FAIRCHILD:FM93C06AM8(16bit), FM93C06AM8(8bit), FM93C06M8, FM93C06N, FM93C46AM8(16bit), FM93C46AM8(8bit), FM93C46AN(16bit), FM93C46AN(8bit), FM93CS46(16bit), FM93C56AN(16bit), FM93C56AN(8bit), FM93CS56(16bit), FM93C66AM8(16bit), FM93C66AM8(8bit), FM93C66AN(16bit), FM93C66AN(8bit), FM93C66B, FM93C66M8(16bit), FM93C66MT8(16bit), FM93C66N(16bit), FM93CS66(16bit), FM93C86AM8(16bit), FM93C86AM8(8bit), FM93C86AN(16bit), FM93C86AN(8bit)

HOLTEK:HT93LC46A(16bit), HT93LC46A(8bit), HT93LC56A(16bit), HT93LC56A(8bit), HT93LC66A(16bit), HT93LC66A(8bit)

ICT:ICT93C46(16bit), ICT93C46(8bit), ICT93C56(16bit), ICT93C56(8bit), ICT93C66(16bit), ICT93C66(8bit)

ISSI:IS93C46(16bit), IS93C56(16bit), IS93C66(16bit)

MICROCHIP:93C06(16bit), 93C06(16bit)-SOP8, 93AA46(16bit), 93AA46(8bit), 93AA46(8bit)-SOP8, 93C46(16bit), 93C46(16bit)-SOP8, 93C46A, 93C46B, 93LC46(16bit), 93LC46(16bit)-SOP8, 93LC46(8bit), 93LC46(8bit)-SOP8, 93LC46A, 93LC46B, 93LC46B-SOP8, 93AA56(16bit), 93AA56(8bit), 93AA56(8bit)-SOP8, 93C56(16bit), 93C56(16bit)-SOP8, 93C56(8bit), 93C56(8bit)-SOP8, 93C56A, 93C56A-SOP8, 93C56B, 93C56B-SOP8, 93LC56(16bit), 93LC56(16bit)-SOP8, 93LC56(8bit), 93LC56(8bit)-SOP8, 93LC56A, 93LC56B, 93LC56B-SOP8, 93AA66(16bit), 93AA66(8bit), 93AA66(8bit)-SOP8, 93C66(16bit), 93C66(16bit)-SOP8, 93C66(8bit), 93C66(8bit)-SOP8, 93C66A, 93C66A-SOP8, 93C66B, 93C66B-SOP8, 93LC66(16bit), 93LC66(16bit)-SOP8, 93LC66(8bit), 93LC66(8bit)-SOP8, 93LC66A, 93LC66B, 93LC66B-SOP8, 93AA76(16bit), 93AA76(8bit), 93C76(16bit), 93C76(8bit), 93LC76(16bit), 93LC76(8bit), 93LC76A, 93LC76B, 93AA86(16bit), 93AA86(8bit), 93C86(16bit), 93C86(8bit), 93LC86(16bit), 93LC86(8bit), 93LC86A, 93LC86B

NSC:NSC93C06, NSC93C06-SOP8, NSC93CS06, NSC93C46, NSC93CS46, NSC93C56, NSC93CS56, NSC93S56, NSC93C66, NSC93CS66, NSC93C86

ROHM:BR93LC46, BR93LC46RF, BR93LC56, BR93LC56RF, BR93LC66, BR93LC66RF

ST:ST93C06, M93S46, M93S46-SOP8, M93S46-T8, M93S46R, M93S46R-SOP8, M93S46W, M93S46W-SOP8, ST93C46, M93S56, M93S56-SOP8, M93S56R, M93S56R-SOP8, M93S56W, M93S56W-SOP8, ST93C56, M93S66, M93S66-SOP8, M93S66R, M93S66R-SOP8, M93S66W, M93S66W-SOP8, ST93C66

***********************25 EEPROM*************************

ATMEL:AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256, AT25512, AT25SF040,AT25SF010,AT25F512A,AT25F512B,AT25F512,AT25F2048,

AT25F4096,AT25F1024,AT25F1024A,AT25DF641,AT25DF321,

CATALYST:CAT25C01, CAT25C01P, CAT25C01S, CAT25C01U, CAT25C02P, CAT25C02S, CAT25C02U, CAT25C03P, CAT25C03S, CAT25C03U, CAT25C04P, CAT25C04S, CAT25C04U, CAT25C05P, CAT25C05S, CAT25C05U, CAT25C08P, CAT25C08S, CAT25C08U, CAT25C09P, CAT25C09S, CAT25C09U, CAT25C16P, CAT25C16S, CAT25C16U, CAT25C17P, CAT25C17S, CAT25C17U, CAT25C32P, CAT25C32S, CAT25C33P, CAT25C33S, CAT25C64P, CAT25C64S, CAT25C65P, CAT25C65S, CAT25C128P, CAT25C128S, CAT25C256P, CAT25C256S

COMMON:25010,25020,25040,25080,25160,25320,25640,25128,25256,25512

MICROCHIP:25AA040, 25C040, 25LC040, 25AA080, 25C080, 25LC080, 25AA160, 25C160, 25LC160, 25AA320, 25C320, 25LC320, 25AA640, 25C640, 25LC640

RAMTRON:FM25C160, FM25640, FM25CL64

ST:ST25C01, ST25W01, ST25C02, ST25W02, ST25C04, ST25W04, ST25C08, ST25W08, ST25C16, ST25W16

TI:TI2532, TI2532A, TI2564

XICOR:XC25010, XC25020, XC25040, XC25080, XC25160, XC25320, XC25640, XC25128, XC25256, XC25512
